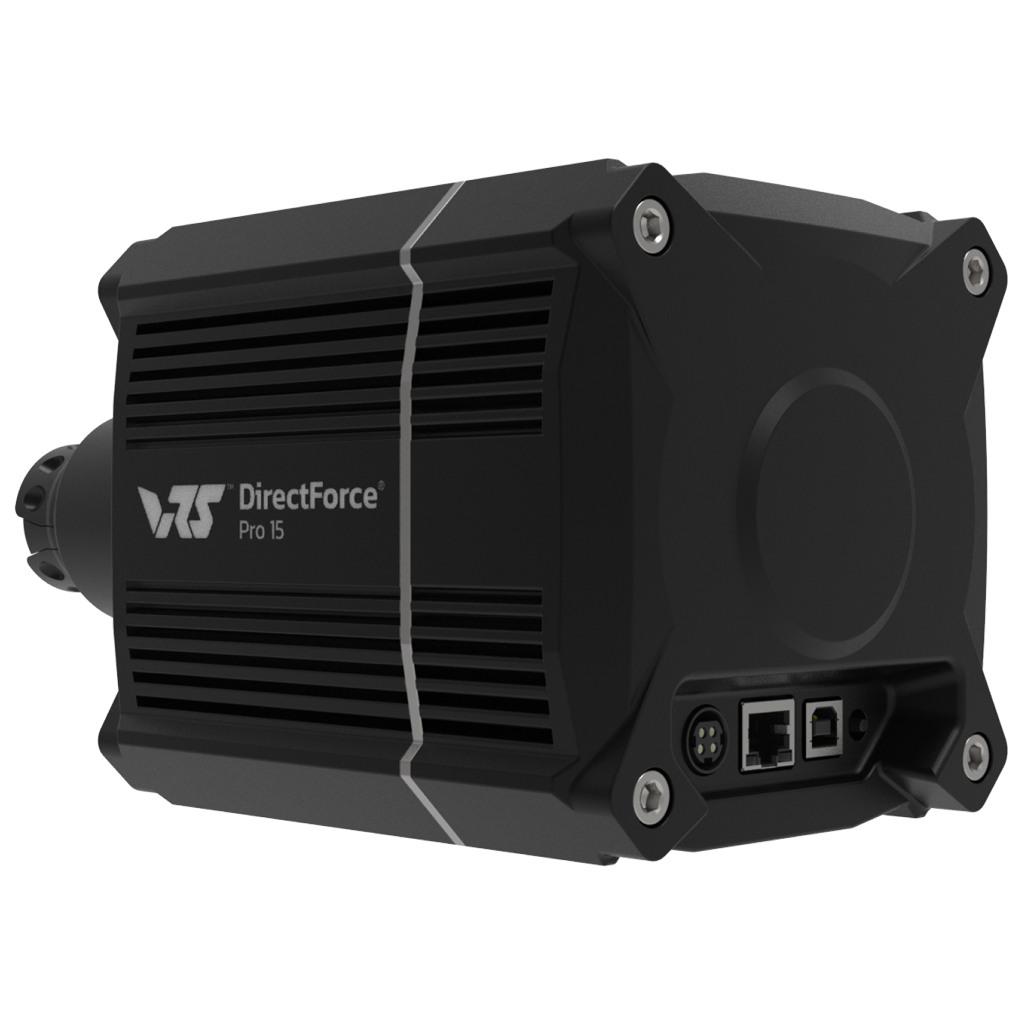

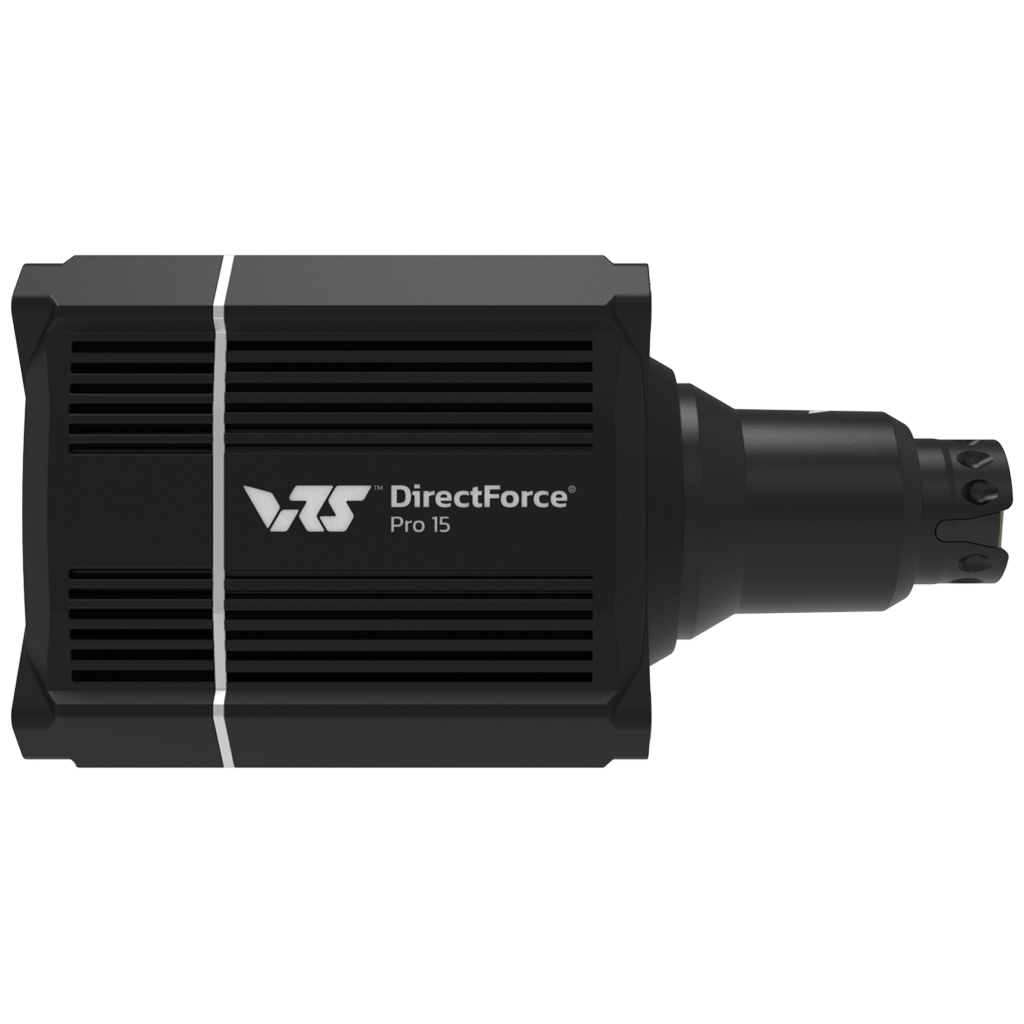

VRS DFP15 DirectForce Wheel Base

VRS DFP15 Wheel Base

Experience cutting-edge performance like never before in a compact design, built with premium materials that are made to last.
The wheel base is rated at 15Nm, equipped with a 21-bit encoder and an industry-leading 5-pole motor!
The DFP15 is designed to satisfy your driving needs whether you are a sprint or an endurance driver.
Our integrated QR with USB-pass through connectivity via slip ring is also designed to give you endless compatibility to mix and match your favorite hardware with our powerful wheel base.

VRS DFP15 Wheel base details

Technical details

Platform: PC
FFB drive system: direct drive
Motor type: 5-pole motor
Communication method: USB
Maximum steering angle: software defined, configurable +/- 90° to +/- 450°
Peak torque: 15 Nm
Peak power: 200 W
Input voltage: 10V~220V AC, external power supply (200W)
USB refresh rate: 1000 Hz
Encoder resolution: 21-bit/10 kHz
Indicator: Yes (2 x LEDs on the RJ45 connector)
App features: Supported

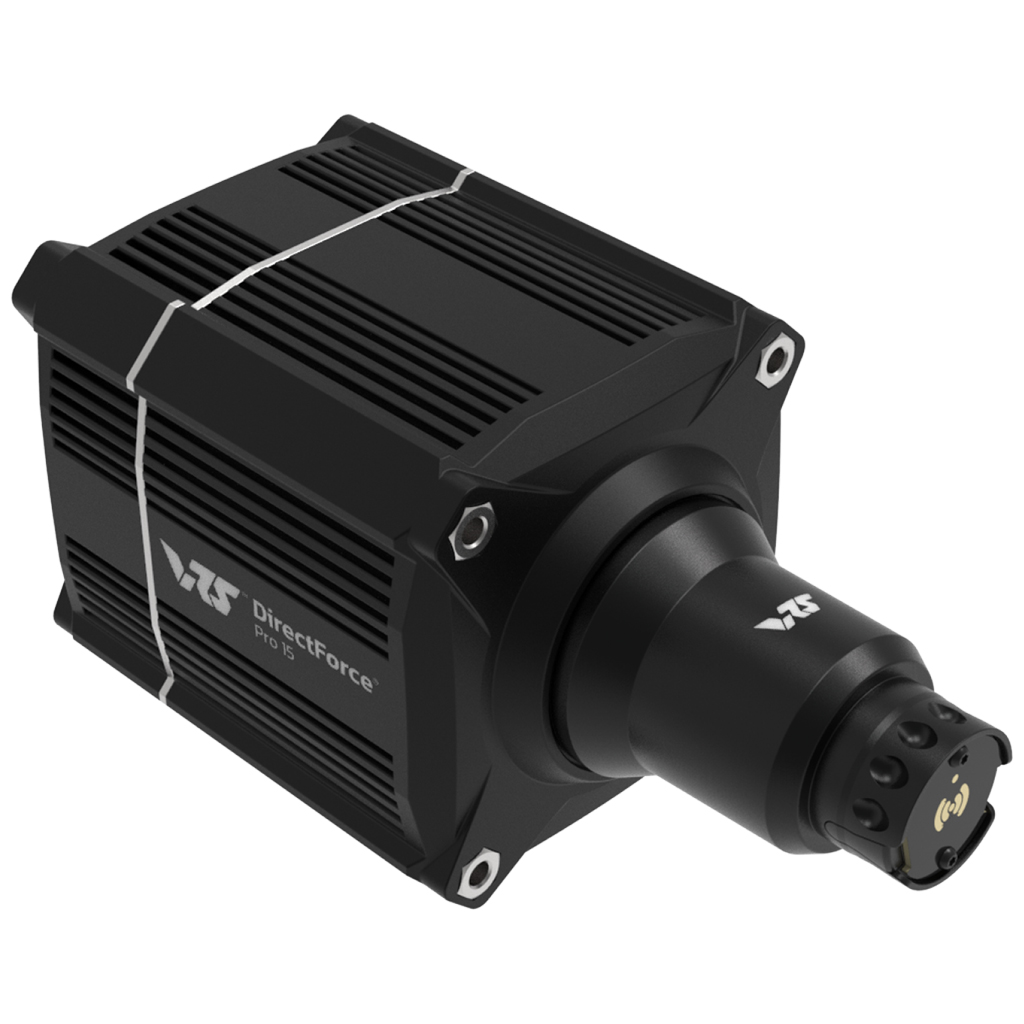

Quick release: Integrated (NRG / D1 style), with USB connection (full speed) via slip ring

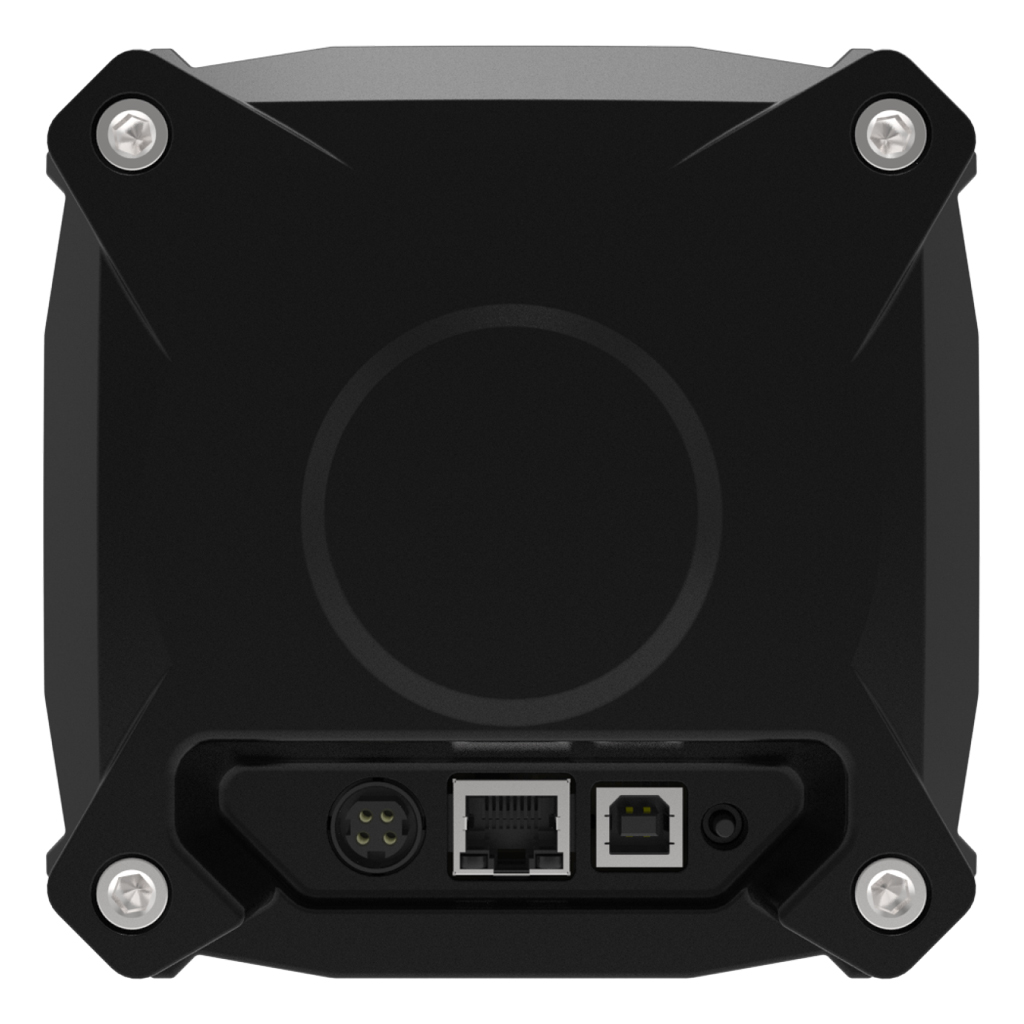

Connection ports: DC power input, USB B, RJ45 safety stop port
Mounting method: front and bottom, compatible with VRS mounting bracket
Mounting holes: 4x M8 x 16mm threaded holes on the front flange with 102.5mm PCD.
Bottom mounting with 4x M8 profile nuts, with a center distance of 78.4mm in the X direction.
In the Z direction, the center distance is flexible from 75mm to 20mm.

Weights and size

Dimensions (length x width x height): 160mm x 130mm x 130mm
Weight: 7.845 kg (Unit only)

Material

Housing material: aluminum
Color: Black

Package include

DFP15 motor
Power cable
USB cable
Hardware
Leaflet with certifications and QR code for the user manual
